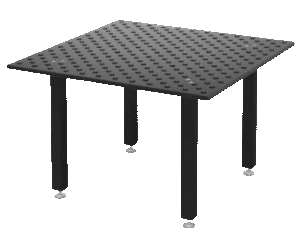

WTB-12 plus Modular Welding Table
Top Surface Plate Size (W × B)
- 600 × 600 mm to 1500 × 2500 mm
Top Plate Thickness
- 12 mm to 25 mm (customized based on application load and structural requirements)
Borehole Diameter
- Ø 16 mm
- Ø 22 mm
- Ø 26 mm
Grid Spacing
- 50 mm × 50 mm grid
- 100 mm × 100 mm grid
Top Surface Plate Finish Options
- As Milled & Blackened
- As Milled & Nitrided
- Polished & Hardened
- Polished & Nitrided
- Polished, Hardened & Blackened
- Polished, Hardened & Nitrided
Top Surface Material
- Tool Steel
- High Strength Low Alloy (HSLA) Steel
E450 Steel
Key Features
Compact and Versatile Design: Ideal for light to medium-duty welding and fabrication tasks.
Top Surface Size Range: Available in various dimensions from 600 × 600 mm to 1500 × 2500 mm, suitable for limited or flexible workspace setups.
Top Plate Thickness: Ranges between 12 mm to 25 mm, customizable based on load-bearing and structural rigidity needs.
Precision Boreholes: Offered with standard diameters of Ø16 mm, Ø22 mm, and Ø26 mm, compatible with most clamping systems.
Grid Pattern Options: Equipped with either 50 × 50 mm or 100 × 100 mm grid layouts for precise fixture placement.
Surface Finish Options: Multiple finishes available to enhance performance and durability, such as:
- As Milled & Blackened
- As Milled & Nitrided
- Polished & Hardened
- Polished & Nitrided
- Polished, Hardened & Blackened
- Polished, Hardened & Nitrided
Durable Surface Material: Built using Tool Steel or High Strength Low Alloy (HSLA) Steel, providing flatness, wear resistance, and thermal stability.
Modular Construction: Allows easy reconfiguration, extension, and customization with standard accessories.
Best Suited For: Educational labs, light fabrication units, precision part welding, prototyping, and maintenance applications.
