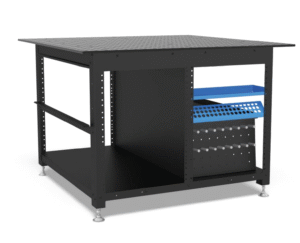

WSB-12 plus Modular Welding Workstation
Top Surface Plate Size (W × B)
- 600 × 600 mm to 1500 × 2500 mm
Top Plate Thickness
- 12 mm to 25 mm (customized based on application load and structural requirements)
Borehole Diameter
- Ø 16 mm
Grid Spacing
- 50 mm × 50 mm grid
- 100 mm × 100 mm grid
Top Surface plate Finish Options
- As Milled & Blackened
- As Milled & Nitrided
- Polished & Hardened
- Polished & Nitrided
- Polished, Hardened & Blackened
- Polished, Hardened & Nitrided
Top Surface Material
- Tool Steel
- High Strength Low Alloy (HSLA) Steel
- E450 Steel
Key Features
The Modular Welding Workstation is a versatile and customizable solution designed to create an efficient and organized workspace. Its modular design allows it to be tailored and expanded based on specific operational needs—whether it’s cutting, drilling, or welding—making it an ideal all-in-one station for a wide range of workshop applications.
The work surface is constructed from Tool Steel, High Strength Low Alloy (HSLA) Steel & E450 Steel steel, which is through-hardened, Nitrided, and to provide excellent durability, high surface hardness, and resistance to wear and corrosion. The tabletop features Ø16 mm precision boreholes laid out in a 50 × 50 mm grid, offering flexible and repeatable fixturing for precision tasks. The plate thickness ranges between 12 mm and 25 mm, making it suitable for general fabrication and assembly operations.
Package Includes:
1× Base Frame – Modular Workstation 1212
1× Modular Perforated Plate – (Additional accessories and configurations available on request)
This workstation is particularly well-suited for training centers, light fabrication units, prototype labs, and multi-purpose engineering workshops.
